BRUS – Unmanned Aerial Universal System
- Easy-to-use system
- Flight according to joystick directions, clicking on map or according to the program
- Automatic take-off and landing
- Return to press the button
- Upgrade SW and HW possibility
- Long endurance
- Low noise
- Reliability (6 drives and rescue parachute)
- High weather resistance
- Variable installation of user equipment (payload)
![](https://www.vtusp.cz/files/uploads/2020/05/brus_1-600x400.jpg)

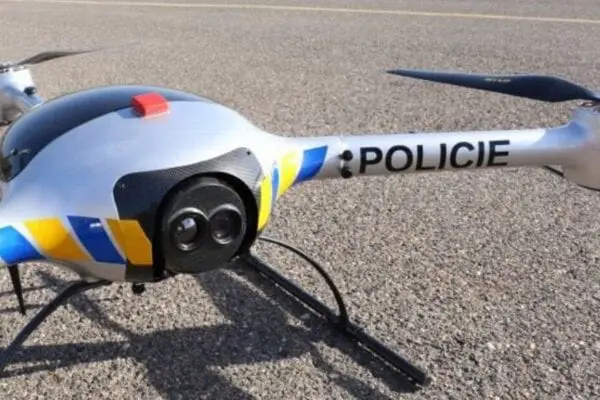

PAYLOAD
Basic
- Two cameras on stabilized hinge (daytime HD and IR SD)
Supplementary
- Radiation sensor DRONES G (etc.)
- 3-axis camera system
- Payload pod for mass up to 3 kg (BRUS) or 8 kg (BRUS H)
![](https://www.vtusp.cz/files/uploads/2020/05/brus_3-600x400.jpg)

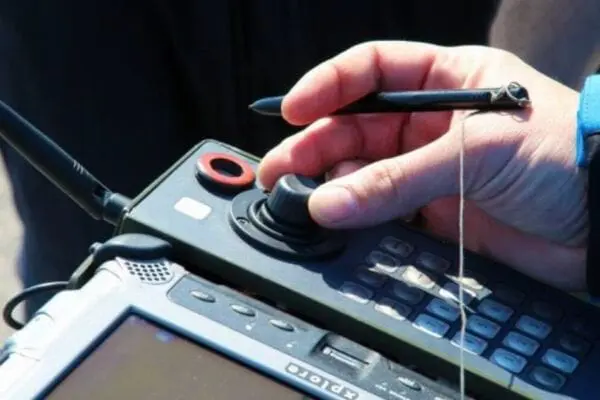

Control
Easy-to-use and reliable system
- Command control by thumb joystick or by clicking on the touch screen
- Possibility to pre-program the flight path and change it at any time
- Automatic take-off and landing
- Automatic take-off and landing
![](https://www.vtusp.cz/files/uploads/2020/05/brus_2-600x400.jpg)

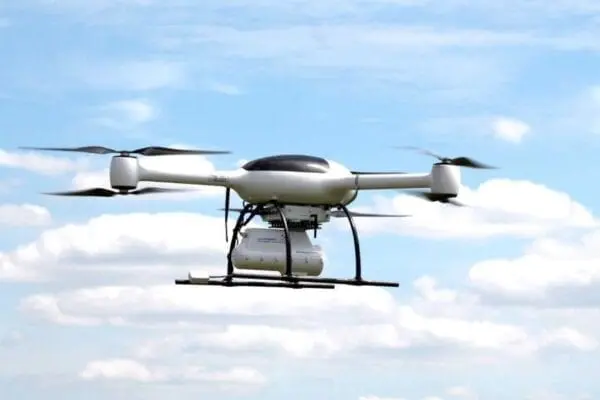

USAGE
BRUS is the ideal means for some air activities in cases where it is not possible or economically disadvantageous to use conventional aviation technology. Here are some examples:
- Documentation of accidents, fires and natural disastersInspection of power lines: high voltage, gas pipelines, heat …
- Inspection of power lines: high voltage, gas pipelines, heat …
- Air pollution control, environmental control
- Check for heat leakage from buildings
- Filming aerial scenes, shooting
- Checking the state of agricultural crops
- Forestry
- Collecting information for the police, the army, and the state administration
![](https://www.vtusp.cz/files/uploads/2020/05/brus_4-600x400.jpg)

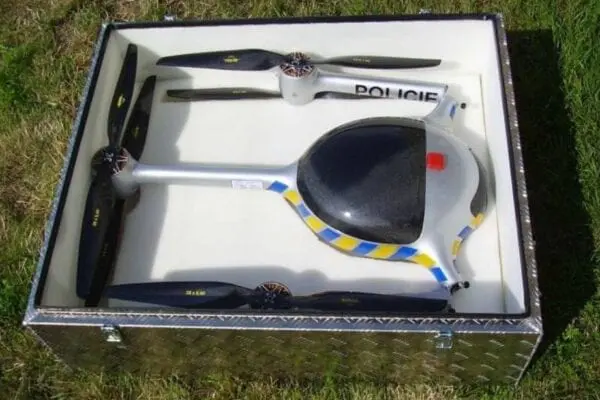

EASY TRANSPORT:
For easy transport and handling, the system was designed as folding without using tools. In a folded state, the dimensions of the device are 60×70×90 [cm] and it also fits into a regular car trunk along with a control panel.
Characteristics | BRUS | BRUS H |
Diameter | 120 cm | 120 cm |
Height | 50 cm | 50 cm |
Propeller (ø) | 28“ | 30“ |
Number of propellers | 6 ks | 6 ks |
Construction | C-F kompozit | C-F kompozit |
Power unit | BLDC electric motors, 6× | BLDC electric motors, 6× |
TOW | 8,7 kg | 11 kg |
MTOW | 12 kg | 30 kg |
Maximal load capacity | 3 kg | 8 kg |
Maximal speed | 60 km/h | 70 km/h |
Maximal endurance | 80 min | 110 min |
Standard endurance | 50 min (depending on load, wind and battery) | 50 min (depending on load, wind and battery) |
Wind resistance | ||
Additional property | Dust, snow and rain resistant system | Dust, snow and rain resistant system |
