AN-12 MOBILE MAST
DESCRIPTION

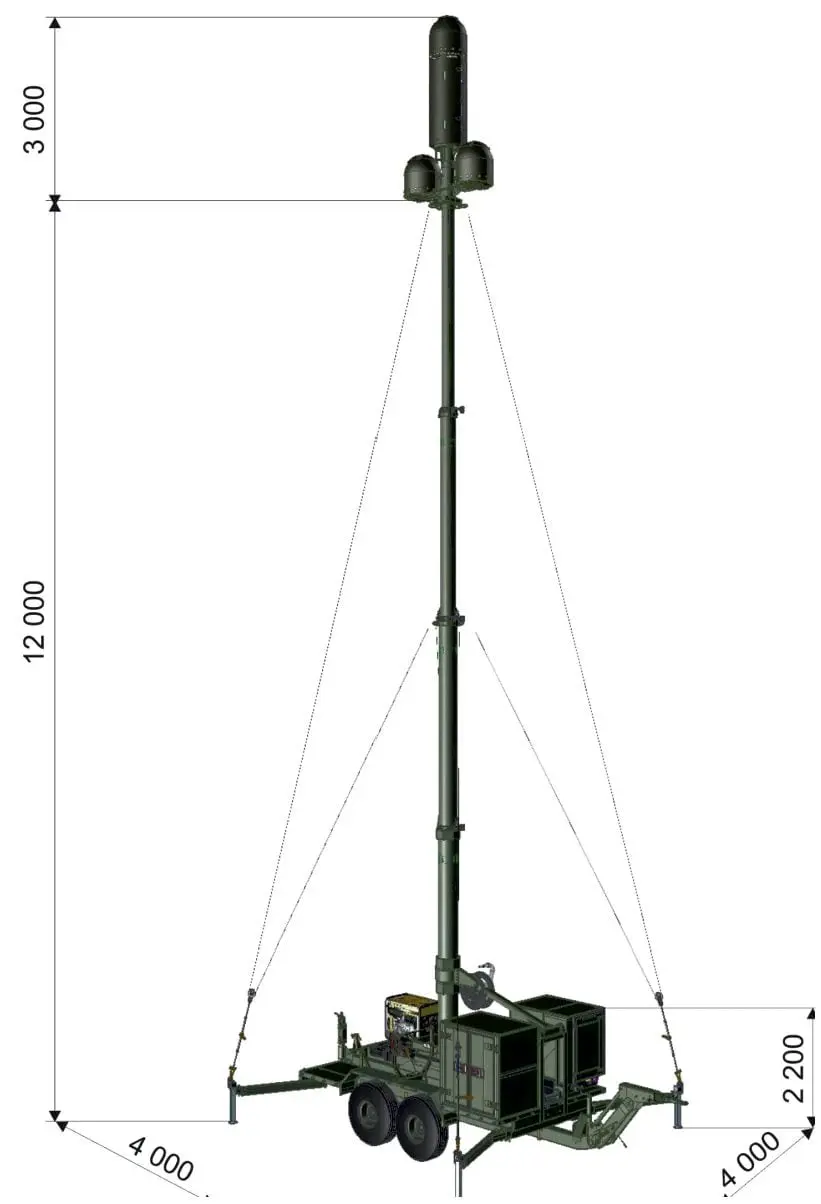

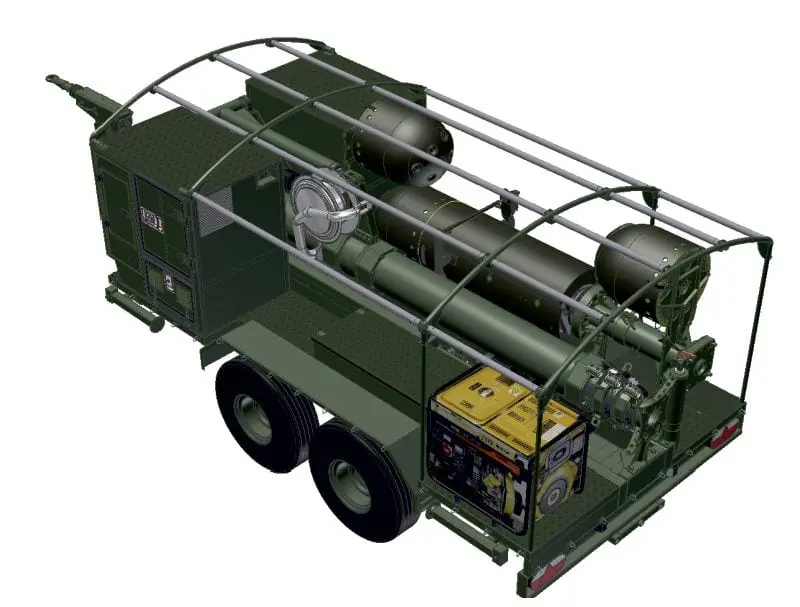

The AN-12 mobile mast is intended both for long-term and short-term usage, as a carrier of the equipment up to 200 kg, in particular of the antenna superstructures. The base of the antenna carrier is created by a trailer with mechanism for horizontal levelling with frameless platform. On the platform, there is placed a four-piece composite telescopic tube from carbon fibre, erecting and telescopic mechanisms, driving elements, mast securing, supporting system, cases with entire accessories and electrical energy source.
POSSIBLE USE
Carrier of mobile wind power plants, camera systems, lighting sets, special antenna superstructures (mobile operators).
| total length in transport position | 6 000 mm |
| total width in transport position | 2 000 mm |
| total height in transport position | 2 200 mm |
| total weight | 3 500 kg |
| max. height of the mast (to heel of the superstructure) | 12 m |
| weight of the superstructure (antennas) | 200 kg |
| area of the superstructure (antennas) | 1 m2 |
| wind speed – functional | 25 m.s-1 |
| wind speed – survival | 30 m.s-1 |
| torsion of the mast on the heel of antenna unit | ±0,75° |
| mast tilt angle on the heel of the environment | ±1,5° |
| marginal temperatures of the environment | -32 °C to +55 °C |
| operating personnel | 2 persons |
| time for deployment | 30 min. |
| climatic resistance for all climatic zones | |
| electric motive system, backing-up mechanically by crank | |
| cableways by multi-cable to the cable drum |
AN-12 UMG MOBILE MAST
DESCRIPTION

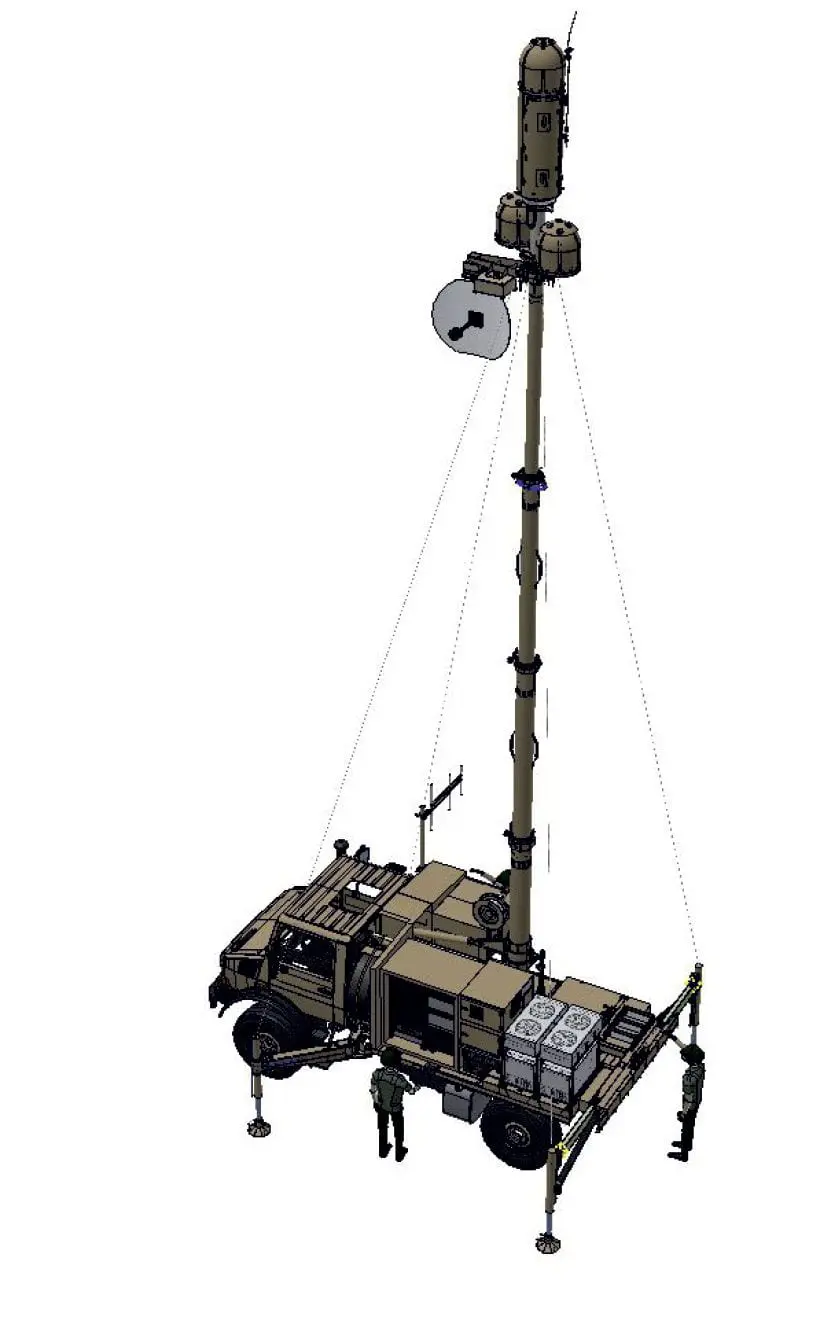

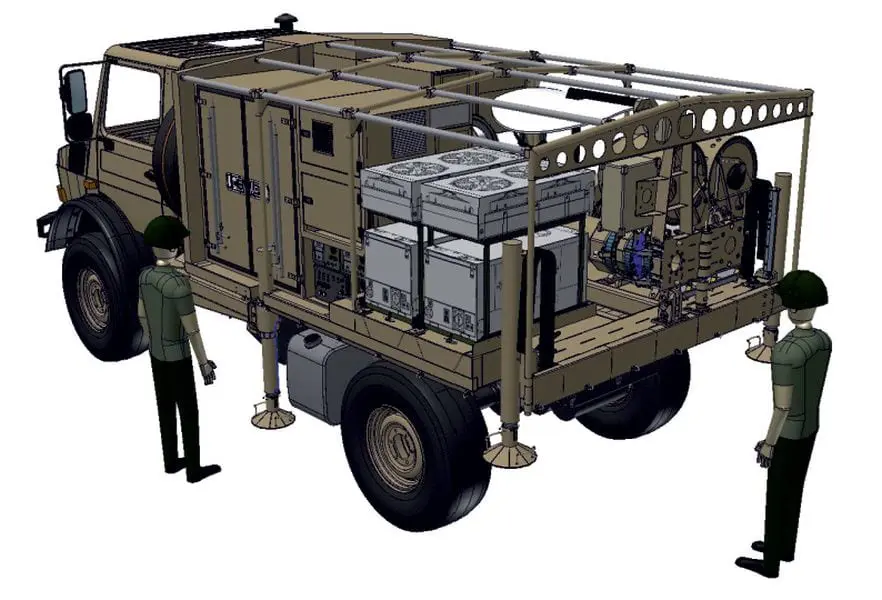

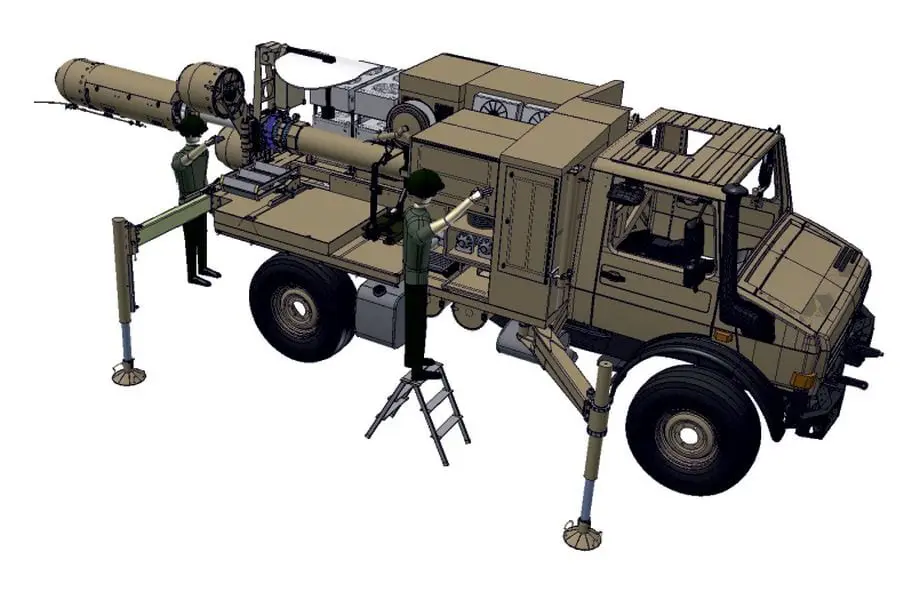

The AN-12-UMG mobile mast is intended for short term or long term use, as a carrier of superstructure, mainly of antennas, with the weight up to 200 kg. The mast (composite telescopic tube) is fixed on a carrier, equipped by supporting / levelling system, basic equipment, storage cases with accessories, case for technology, mechanical interface and multi-cable with inertia-reel cylinder.
POSSIBLE USE
as a carrier of antennas with possibility of special superstructure assembly according to the customer’s wishes, up to the allowed weight and dimensions.
BASIC TECHNICAL PARAMETERS
| total length in transport position | 6 304 mm |
| total width in transport position | 2 510 mm |
| total height in transport position | 2 746 mm |
| total weight | 8 500 kg |
| max. height of the mast (to heel of the superstructure) | 12,28 m |
| weight of the superstructure (antennas) | 200 kg |
| area of the superstructure (antennas) | 1 m2 |
| wind speed – functional | 30 m.s-1 |
| wind speed – survival | 35 m.s-1 |
| torsion of the mast on the heel of antenna unit | ±0,75° |
| mast tilt angle on the heel of the environment | ±1,5° |
| marginal temperatures of the environment | -32 °C to +55 °C |
| operating personnel | 2 persons |
| time for deployment | 30 min. |
| climatic resistance for all climatic zones | |
| electric motive system, backing-up mechanically by crank | |
| cableways by multi-cable to the cable drum |
